Time relays RPC-.BP-...
Time relays RPC-.BP-...
Single-function time relays. Time functions: BP - symmetrical cyclical operation pause first. AC1: 1CO - 4000 VA, 2CO - 2000 VA. Max. switching voltage 300 V.
Technical info
RPC-.BP-... Time function: Symmetrical cyclical operation pause first.
| Number and type of contacts |
1 CO |
2 CO |
||
| Rated load |
AC1 |
16 A / 250 V AC |
8 A / 250 V AC |
|
| DC1 |
16 A / 24 V DC 0,3 A / 250 V DC |
8 A / 24 V DC 0,3 A / 250 DC |
||
| Input rated voltage |
50/60 Hz AC |
230 V zaciski A1, A2 |
||
| AC: 50/60 Hz AC/DC |
12...240 V zaciski (+)A1, (-)A2 |
|||
| Time ranges |
OFF - постоянное выключение; ON - постоянное включение 1 сек.; 10 сек.; 1 мин.; 10 мин.; 1 ч; 10 ч; 1 дн.; 10 дн |
|||
| Timing adjustment |
smooth - (0,1...1) x time range (does not refer to range ON / OFF) |
|||

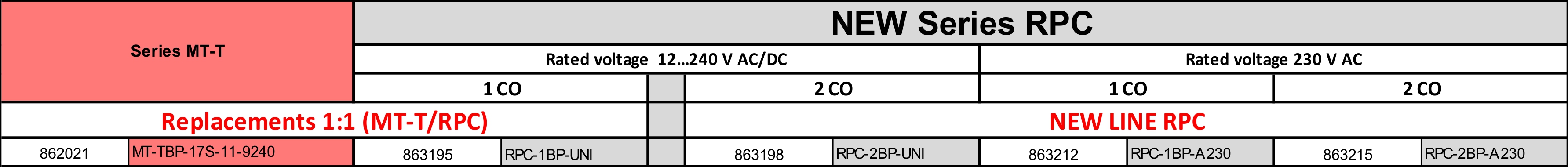

Replacements for relay MT-TBP-17S-11-9240
Tables of equivalents of MT-T - Download
