New RSR54 Solid State Relays – High Performance and Efficient Heat Dissipation

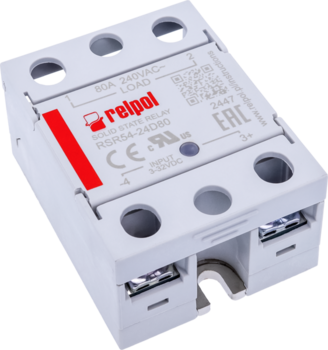

Our company is expanding its range of solid state relays with the new RSR54 series – single-phase solid state relays with a high current range from 25 A up to 125 A. They are available in various voltage configurations (24…280 V AC, 24…530 V AC, 24…660 V AC) and with either AC or DC control.

RSR54 combines a compact design with high reliability and excellent overload resistance.
Zero-cross switching and a thyristor (SCR)-based output ensure spark-free operation and exceptional device durability.

Efficient heat dissipation with dedicated heatsinks
The new RSR54 solid state relays are designed to effectively handle thermal management. A variety of RH-series heatsinks are available (such as RH08, RH08-F, RH16, RH21), helping to maintain optimal operating temperatures even under high current loads and elevated ambient conditions. For instance, the RH08-F heatsink with fan features a very low thermal resistance of 0.35 °C/W, providing effective cooling even in demanding applications.

Technical specifications of RSR54 relays:

  • Load current: 25 A, 40 A, 60 A, 80 A, 100 A, 125 A
  • Control voltage: 3…32 V DC or 90…280 V AC
  • Zero-cross switching
  • Optoisolation: 4,000 Vrms
  • TVS protection (Transient Voltage Suppression)
  • LED status indicator
  • Screw terminals: M3 (input), M4 (output)
  • Mounting: panel or heatsink

1

Typical applications of RSR54
RSR54 relays are ideal for industrial environments where maintenance-free, durable and silent operation of actuators is essential, including:

  • Temperature chambers
  • Food and plastics industry
  • Heating systems and resistive heaters
  • Processing machinery

RSR54 – reliability, performance, and thermal safety in one relay.

More information – download the RSR54 datasheet.
