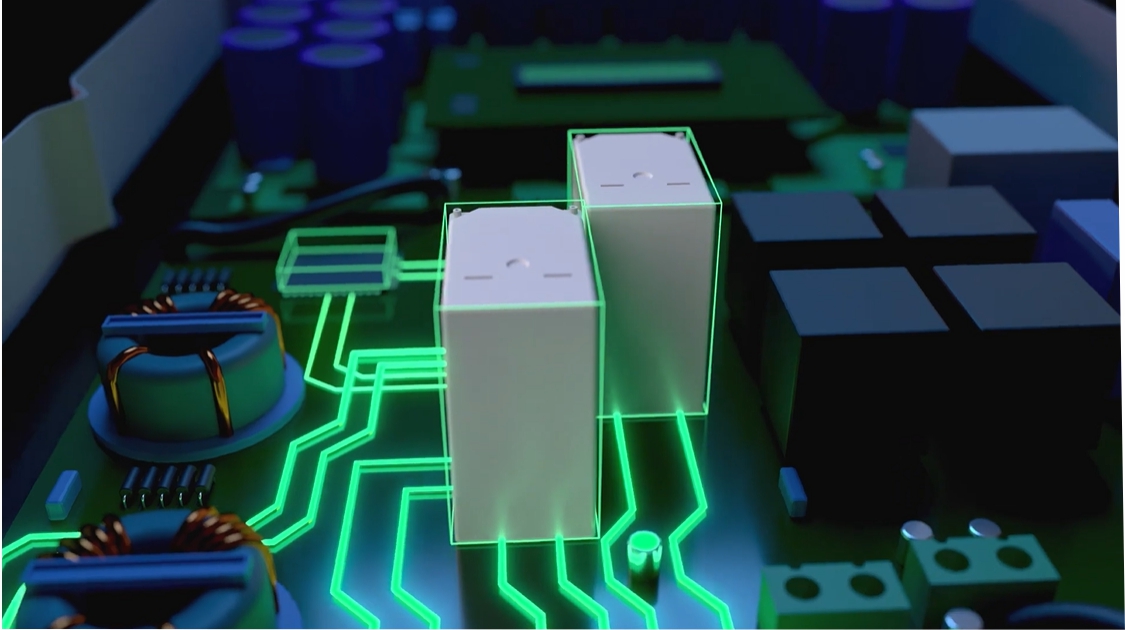

Relay RS80 with a rated load of up to 90 A

Technical info

Contact data

Number and type of contacts

1 NO

Rated / max.  switching voltage     AC

250 V / 440 V

Rated load (capacity)

AC1: 80 A / 250 V AC;    DC1: 80 A / 250 V AC

Coil data

Rated voltage                               DC

12, 24 V

Rated power consumption             DC

0,48 W

General data

Electrical life resistive  AC1

80 A, 277 V AC, 85 °C  (UL, VDE)

Mechanical life (cycles)


Ambient temperature operating

-40...+85 o
