Power controllers

, New products

Power controllers

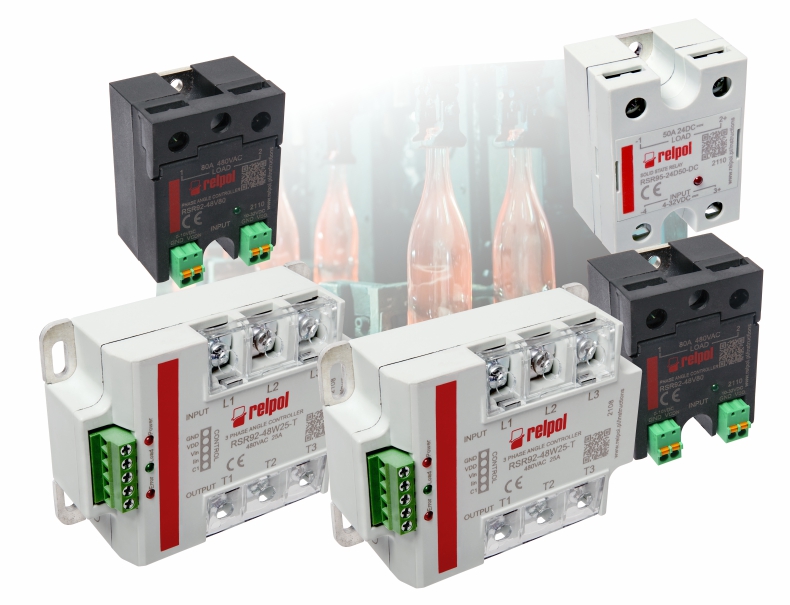

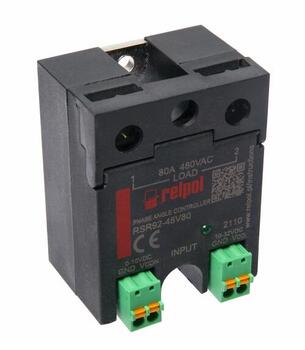

1-phase and 3-phase RSR92 power controllers designed to control receivers up to 80A.

They are used to regulate the power delivered to the receiver, where this power is proportional to the input control signal. They are used in automation control systems where smooth control of receiver power is required for resistive or resistive-inductive loads. T

Typical applications for power controllers:

- heaters, industrial furnaces (annealing, quenching, drying, etc.),

- dryers, plastics processing equipment,

- industrial sealing machines,

- glass production industry,

- industrial heating systems (matting and lining of pipelines),

- load transformers.

Główne cechy

  • SCR output (thyristors)
  • Max. load voltage 280, 530 V AC (single-phase)

    Sterowniki mocy

  • Load voltage: 176...280 V AC, 300...530 V AC
  • Control input: 0-10VDC, 4-20mA
  • Load current: 25A-80A
  • Integrated RC/MOV protection circuit
  • Protection category EN 60529 -  IP20
  • LED trip indicator
  • RoHS
