MIDDLE EAST ENERGY 2023 - Hall 3 Stand A31

During the exhibition, we will present among others:

- RSR75 - relays for use in the toughest conditions and high mechanical load, frequently switching in conveyor systems (valves and resistive motor loads), controlling electrical heat (heaters),  in places where silent operation of device is required (such as offices or hospitals)

• Load current 15...25 A
• Max. load voltage 280, 660 V AC (single-phase)
• Control voltage at the input: 3...32 V DC, 4...32V DC

- RSR95 solid state relays for high DC currents up to 100 A

They are based on modern MOSFET / IGBT power semiconductor technologies.

They work in battery systems (industrial emergency power systems, energy storage systems, EV industry).

Quick and safe on / off switching of DC induction circuits without the formation of an electric arc (valves, coils of mechanical drives and other inductive loads).
More

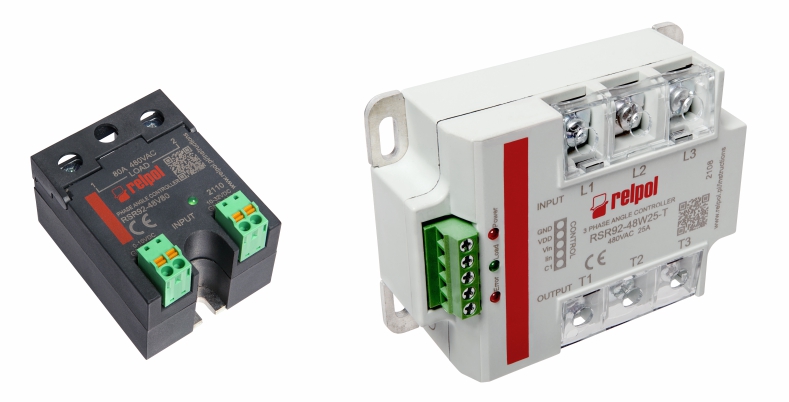

- Power controllers are a new group of products, which is dedicated to regulate the power delivered to the receiver, where this power is proportional to the input control signal. They are used in automation control systems where smooth control of receiver power is required for resistive or resistive-inductive loads:

• RSR92      - Single-phase, load voltage in ranges: 176...280 V AC, 300...530 V AC
• RSR92...T - Three-phase, load voltage in range: 200...530 V AC
  More

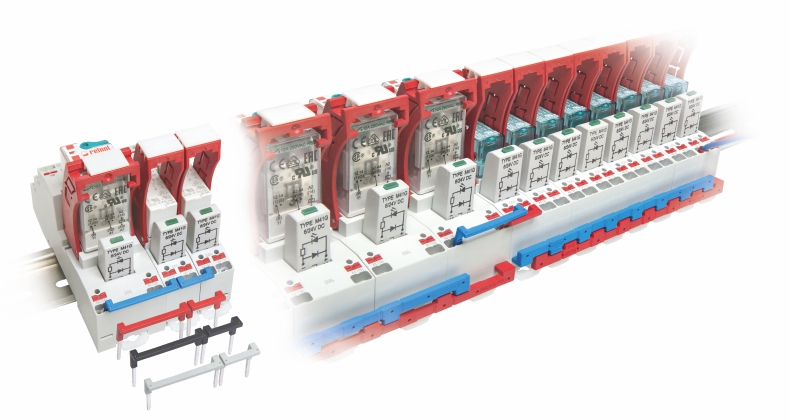

- New interface relays in push-in technology, which together with a wide range of accessories gives the unlimited possibilities of free bridging of common signals and quickly connecting groups of relays.

Advantages of the new relays:

• complete, functional and convenient to install solutions for every application
• labor costs saving solution thanks to easy and quick installation
• best solution for measuring and control thanks to hand free stable position of the measuring probes in the sockets in any position
• safety and reliability thanks to Push-in buttons and best non-flammable materials
• permanent and visible marking thanks to the design allowing to use industrial standard description plates and self-adhesive labels
• fast & flexible bridging, unlimited possibilities thanks to wide range of accessories in 4 different colours

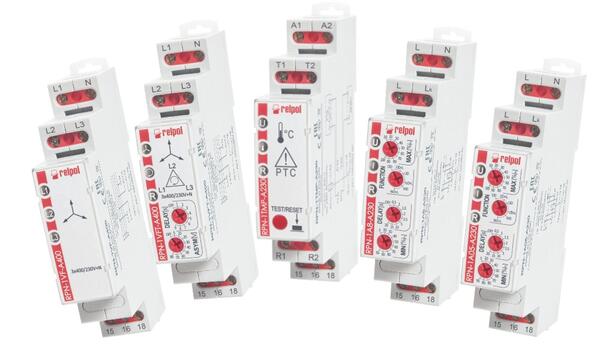

-  Monitoring relays - RPN! NEW SERIES!

• Multifunctions monitoring relays - AC current monitoring in 1-phase network: RPN-.A..-A230

• Single-functions monitoring relays - motor temperature monitoring: RPN-.TMP-A230

• Multifunctions monitoring relays - AC voltage monitoring in 3-phase network: RPN-.VF-A400 ; RPN-.VF.-A400,  RPN-.VFR.-A400,  RPN-.VFS.-A400

More

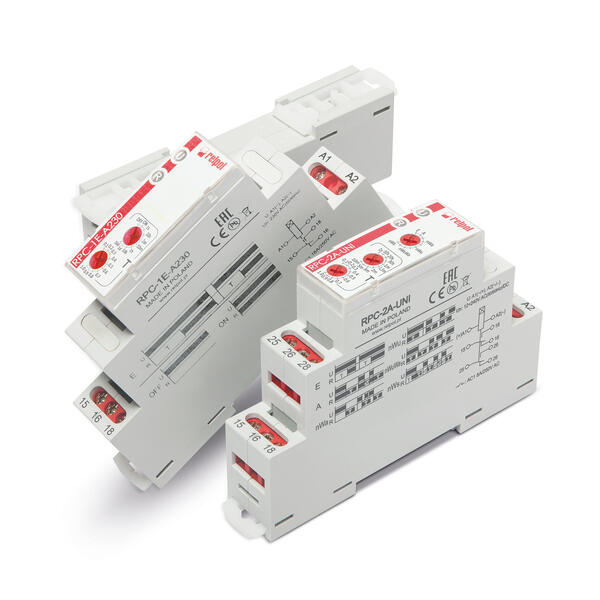

- Time relays RPC - 36 different executions

• MULTIFUNCTION (performance of 23 various functions, 9 versions, 8 time ranges)
• SINGLE-FUNCTION (performance of 3 various functions, 12 versions, 8 time ranges)
• DOUBLE TIMER (performance of 7 various functions, 14 versions, 8 time ranges, independently controled times T1 and T2)
• STAR-DELTA ( 10 time ranges, independently controled times T1 and T2)

More

- Installation relays RPI - Resistance to inrush current 120 A in time 20 ms

RPI-1ZI-U24A, it is new installation relays about Resistance to inrush current 120 A in time 20 ms.

Maximum breaking capacity:

• at fluorescent lamp load 800 W
• at halogen lamp load 2 500 W
• at LED lamp load – 500 W

Works well with small, single-phase motors up to a maximum power of 650 W

More
