Relays
Home
/
Products
/
OUR OFFER
/
Relays
/
miniature PCB power relays

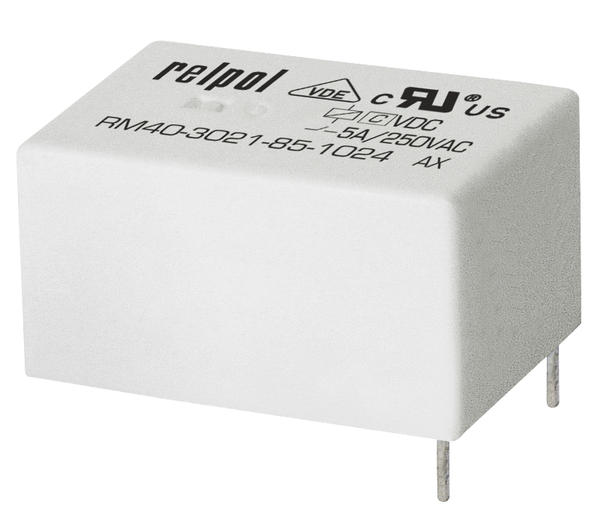

Relay RM40
Contacts: 1CO, 1NO; rated load AC1 – (1CO) 5 A/250 V AC, (1NO) 8 A/250 V AC; coils DC; for PCB

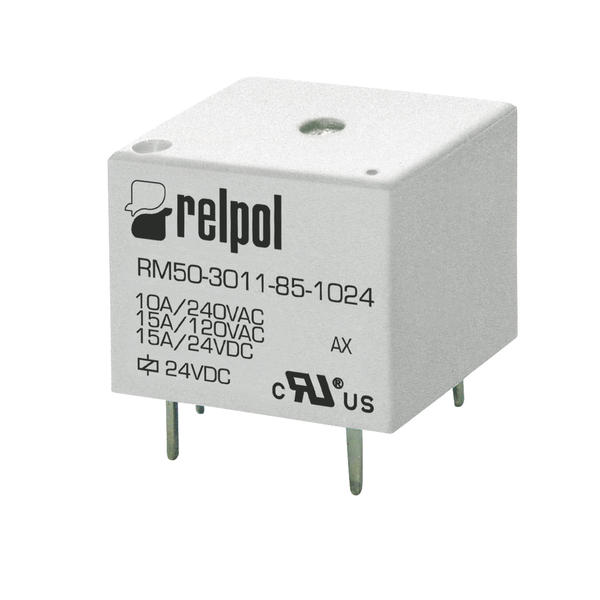

Relay RM50
Contacts: 1CO, 1NO; rated load AC1 – 10 A/240 V AC; coils DC; for PCB
Relay RM84
Contacts: 2CO, 2NO; rated load AC1 – 8 A/250 V AC; colis AC or DC; for PCB and sockets

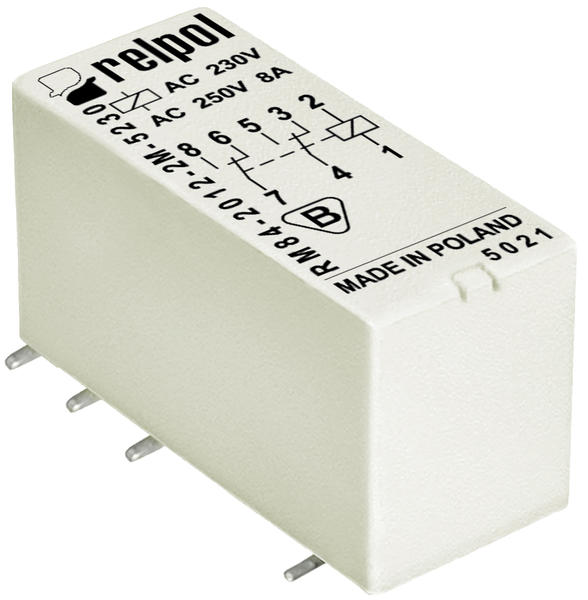

Relay RM84 SMT
Contacts: 2 CO, 2 NO; rated load AC1 – 8 A/250 V AC; coils AC or DC; for surface mounting SMT

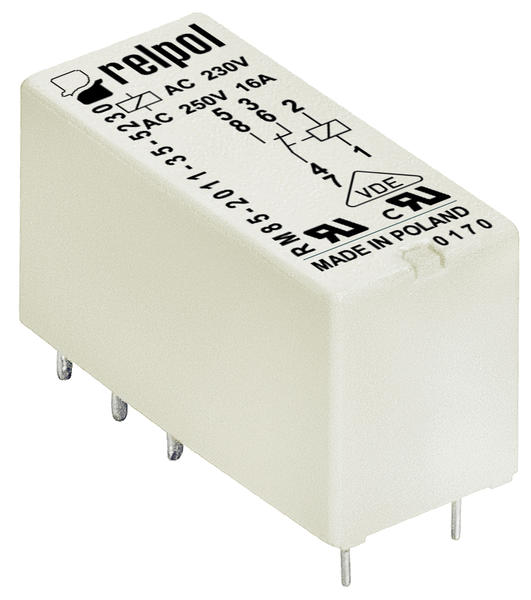

Relay RM85
Contacts: 1CO, 1NO; rated load AC1 – 16 A/250 V AC; coils AC or DC; for PCB and sockets

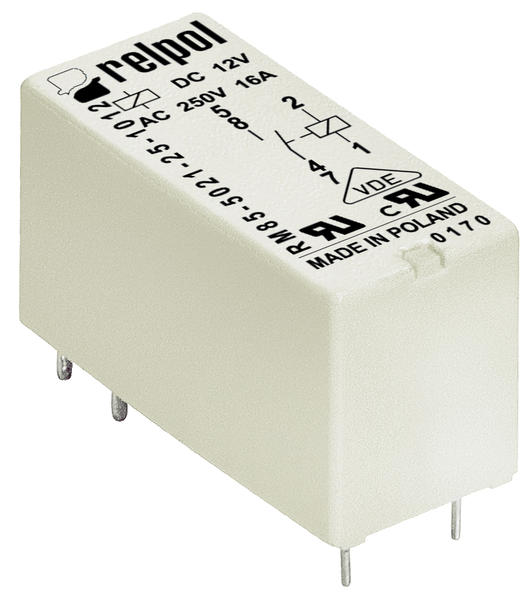

Relay RM85 inrush
Resistance to inrush current 80 A (20 ms). Contacts: 1NO; rated load AC1 – 16 A/250 V AC; coils DC; for PCB and sockets

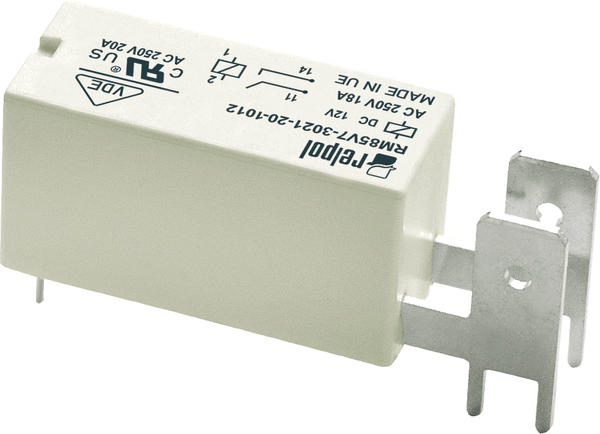

Relay RM85 faston
Contacts: 1NO; rated load AC1 – 20 A/250 V AC; coils DC – sensitive; coil terminals PCB, contacts terminals for PCB and flat insert connectors

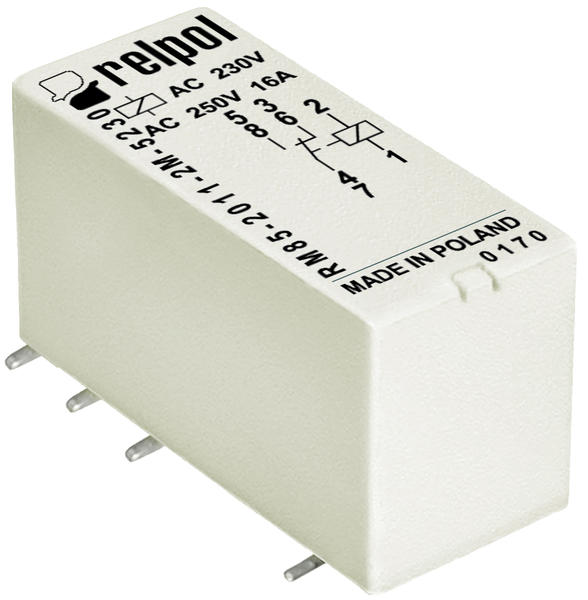

Relay RM85 SMT
Contacts: 1 CO, 1 NO; rated load AC1 – 16 A/250 V AC; coils AC or DC; for surface mounting SMT

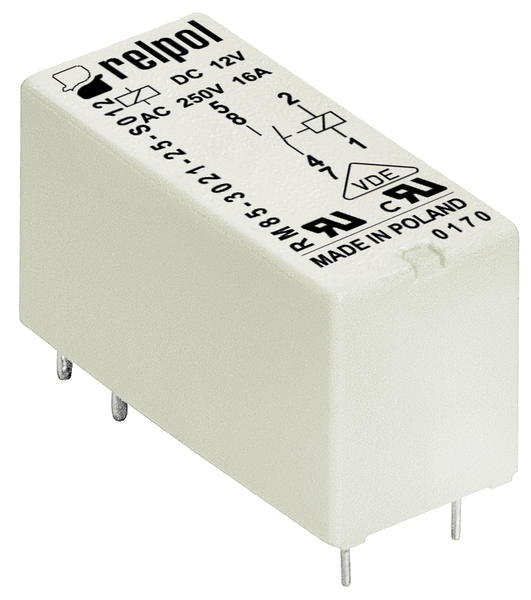

Relay RM85 105 °C
Contacst: 1 NO; rated load AC1 – 16 A/250 V AC; coils DC – sensitive; for PCB and sockets
Relay RM85 for high voltage switching
Contacts: 1NO (increased contact gap); rated load AC1 – 5 A/480 V AC; coils DC; for PCB

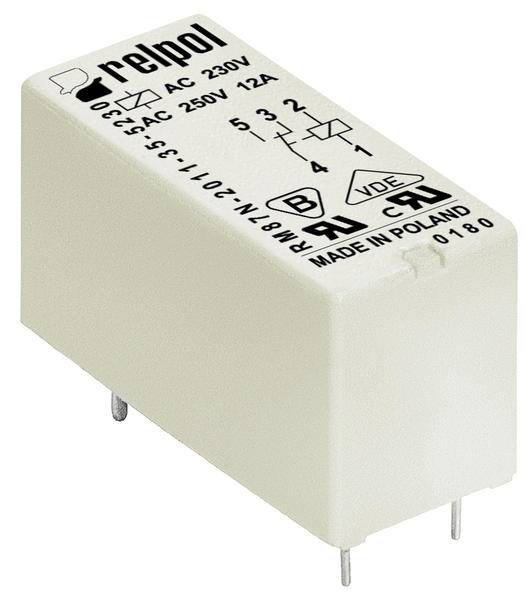

RM87, RM87 sensitive
Contacts: 1CO, 1NO; rated load AC1 – 12 A/250 V AC or 10 A/250 V AC; coils AC, DC, DC – sensitive (1 NO); for PCB and sockets

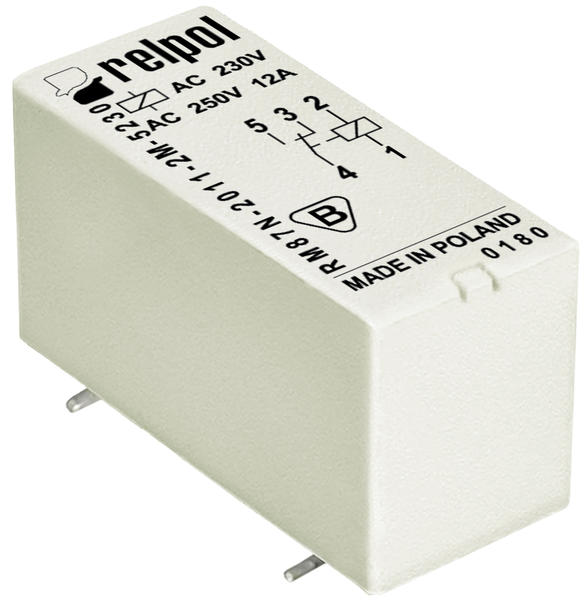

Relay RM87N SMT
Contacts 1CO, 1 NO; rated load AC1 – 12 A/250 V AC; coils AC or DC; for surface mounting SMT

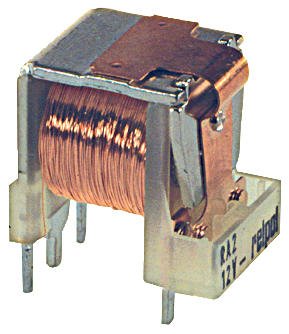

RA2
Contacts: 1CO, 1NO, 2NO; max. switching voltage DC – 60 V/60 V; coils DC; for PCB

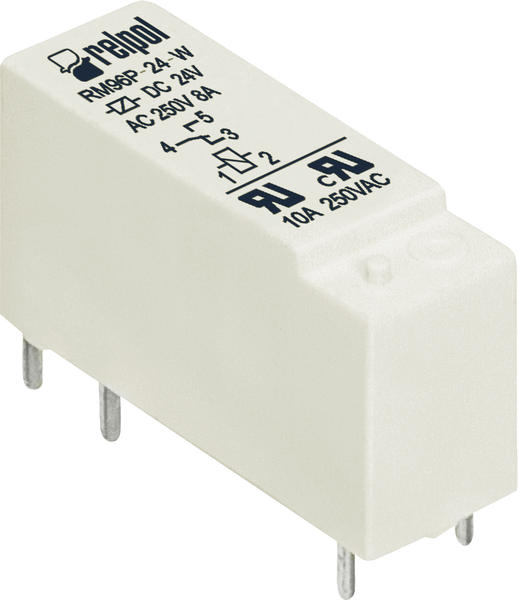

RM96
Contacts: 1CO, 1NO, 1NC; rated load AC1 – 8 A/250 V AC; coils DC; for PCB and sockets

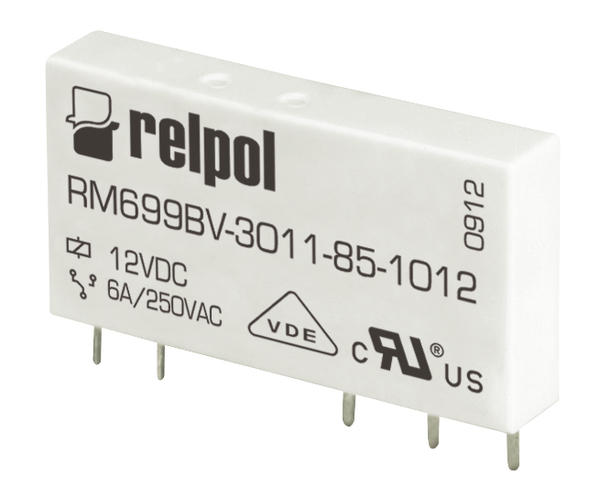

RM699B
Contacts: 1 CO; rated load AC1 – 6 A/250 V AC or 0,05 A/30 V AC; coils DC; for PCB and sockets

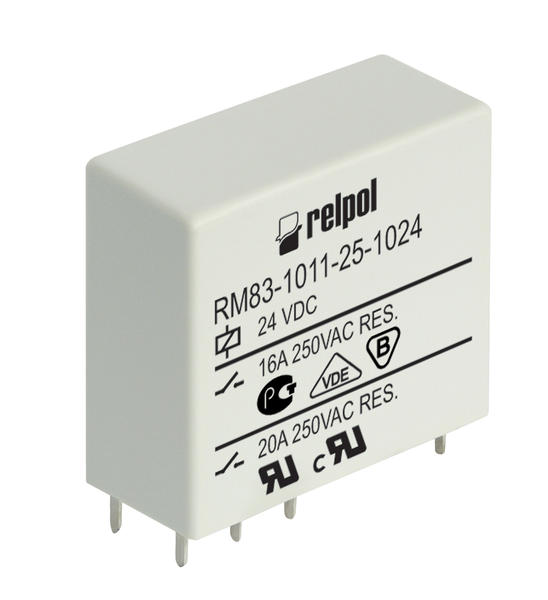

RM83
Version 1 NO - AgSnO2 for special loads: resistance to inrush current 120 A (20 ms). Contacts: 1CO, 1NO, 1NC; rated load AC1 – 16 A/250 V AC; coils DC or DC – sensitive;for PCB and sockets

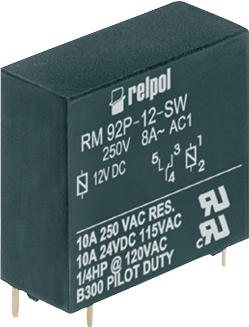

RM92
Contacts: 1 CO, 1 NO, 1 NC; rated load AC1 – 8 A/250 V AC; coils DC or DC – version sensitive; for PCB and sockets

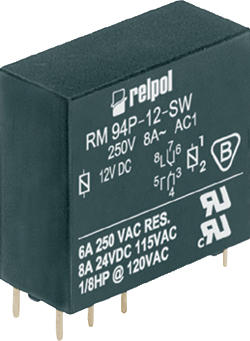

RM94
Contacts: 2 CO, 2 NO, 2 NC; rated load AC1 – 8 A/250 V AC; coils DC or DC – version sensitive; for PCB and sockets
