Relays
Home
/
Products
/
OUR OFFER
/
Relays
/
industrial relays

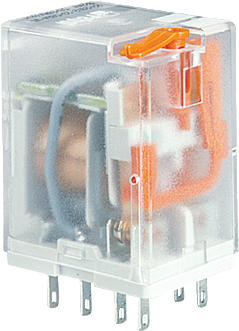

R2
Contacts: 2 CO; rated load AC1 - 12 A/250 V AC; coils AC or DC; for plug-in sockets and PCB; mechanical indicator, LED (option); test button

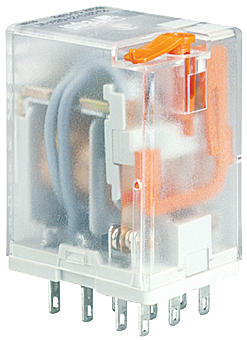

R3
Contacts: 3 CO; rated load AC1 - 10 A/250 V AC; coils AC or DC; for plug-in sockets and PCB; mechanical indicator, LED (option); test button

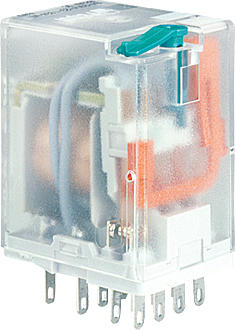

R4
Contacts: 4 CO; rated load AC1 - 6 A/250 V AC; coils AC or DC; for plug-in sockets and PCB; mechanical indicator, LED (option); test button

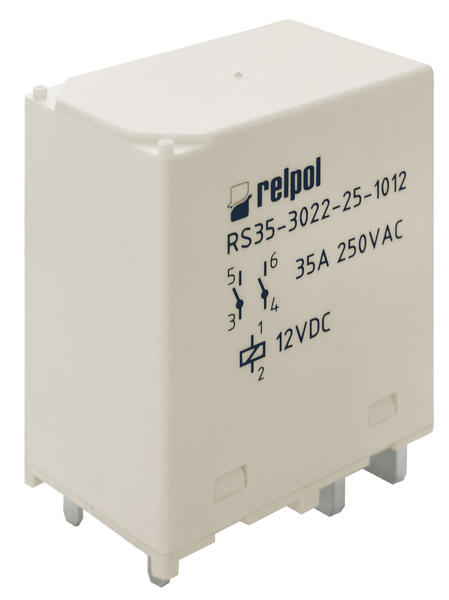

RS35
Contacts: 2 NO; rated load AC1 - 35 A / 250 V AC; coils DC; for PCB; reinfforced insulation; contact gap > 1,75 mm
RS50
Contacts: 2 NO; rated load AC1 - 4A / 250 V AC; coils DC; for PCB; reinfforced insulation; contact gap > 1,75 mm

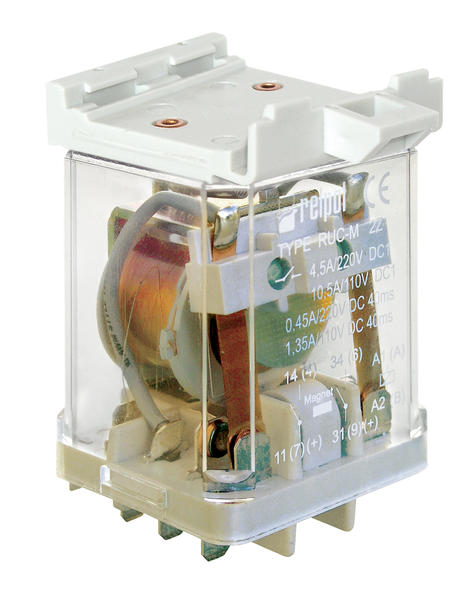

RUC-M
Magnetic blow-out relays for high DC load; contacts: 1 NO (double-break), 2 NO; rated load DC1 – (1NO) 12 A/220 V DC, (2NO) 4,5 A/220 V DC; coils AC or DC; indicator LED (option)

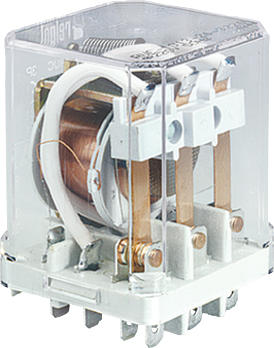

RUC
Contacts: 2 CO, 3 CO, 2 NO, 3 NO or 2 NO, 3 NO (with contact gap 3 mm); rated load AC1 – 16 A/250 V AC or 10 A/400 V AC; coils AC or DC; indicator LED (option); test button (option)

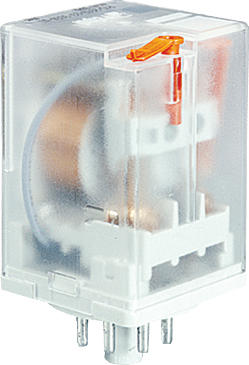

R15 2P
Contacts: 2 CO; rated load AC1 - 10 A/250 V AC; coils AC or DC; for plug-in sockets and PCB; mechanical indicator; test button; other equipment (option)

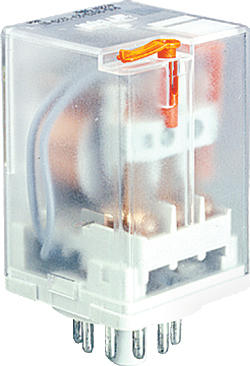

R15 3P
Contacts: 3 CO; rated load AC1 - 10 A/250 V AC; coils AC or DC; for plug-in sockets and PCB; mechanical indicator; test button; other equipment (option)

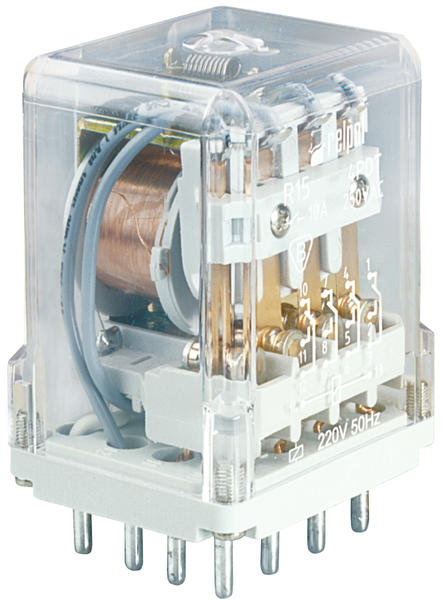

R15 4P
Contacts: 4 CO; rated load AC1 - 10 A/250 V AC; coils AC or DC; for plug-in sockets and PCB; mechanical indicator; test button; other equipment (option)

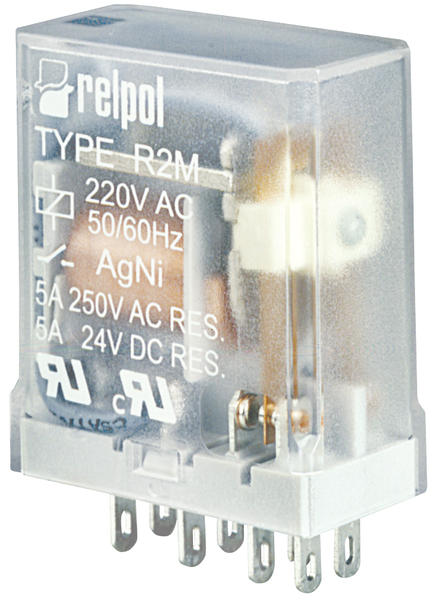

R2M
Contacts: 2 CO; rated load AC1 - 5 A/250 V AC; coils AC or DC; for plug-in sockets and PCB

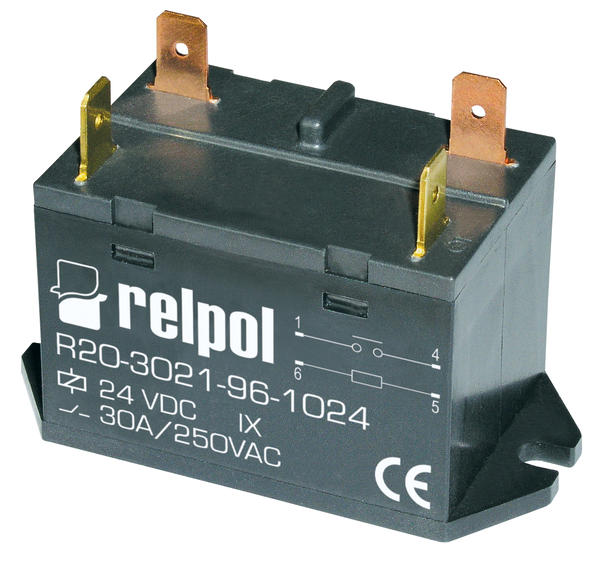

R20
Contacts: 1NO, 2NO; rated load AC1 – 30 A/250 V AC or 25 A/250 V AC; coils AC or DC; for flat insert connectors

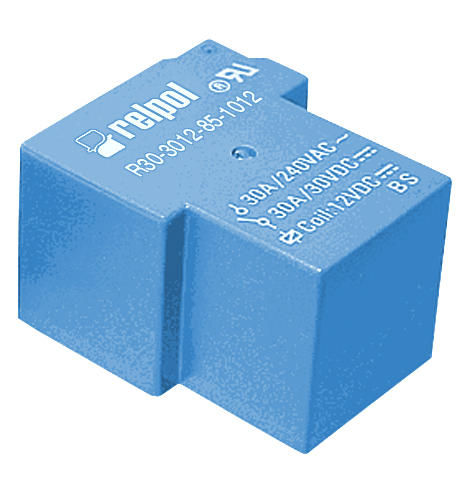

R30
Contacts: 1CO, 1NO; rated load AC1 – (1CO) 20A/10A / 240 V AC lub (1NO) 30A/240 V AC; coils AC or DC; for flat insert connectors; for PCB

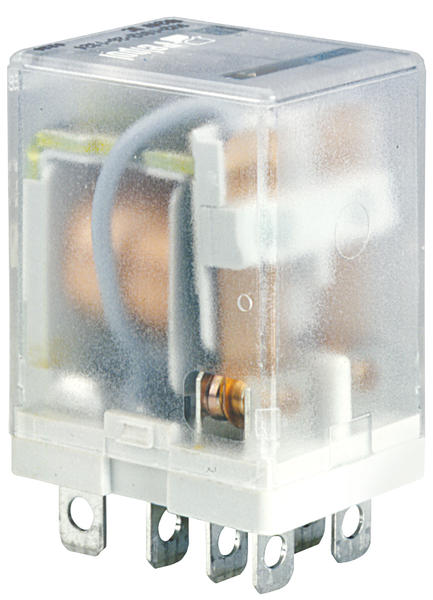

RY2
Contacts: 2 CO; rated load AC1 - 12 A/250 V AC; coils AC or DC; for flat insert connectors and plug-in sockets; light indicator LED (option); diode D (option)

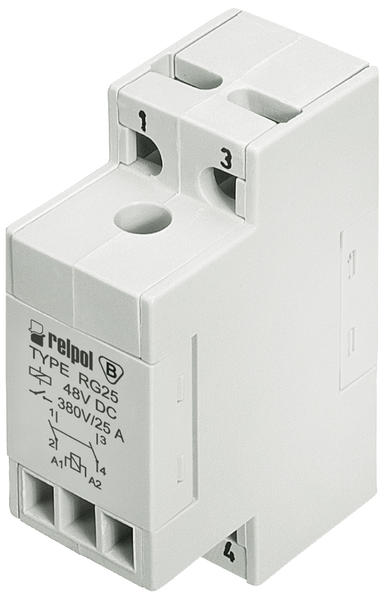

RG25
Contacts: 2 NO; rated load AC1 - 25 A/400 V AC; coils AC or DC; high insulation dielectric strength; 35 mm rail mount
